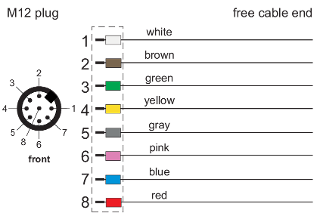

M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, unshielded, 8-pole, PUR

Description

Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.
Check US distributor inventory
Overview of variants
Description
Interface 1
Interface 2
Length
Part number
Accessories
M12 Sensor/actuator cable, A-coded, 1.0 m,
M12 plug straight - free line end,
unshielded, 8-pole, PUR
M12-plug
free line end
1 m
142MEA10010
M12 Sensor/actuator cable, A-coded, 2.0 m,
M12 plug straight - free line end,
unshielded, 8-pole, PUR
M12-plug
free line end
2 m
142MEA10020
M12 Sensor/actuator cable, A-coded, 5.0 m,
M12 plug straight - free line end,
unshielded, 8-pole, PUR
M12-plug
free line end
5 m
142MEA10050
M12 Sensor/actuator cable, A-coded, 10.0 m,
M12 plug straight - free line end,
unshielded, 8-pole, PUR
M12-plug
free line end
10 m
142MEA10100
