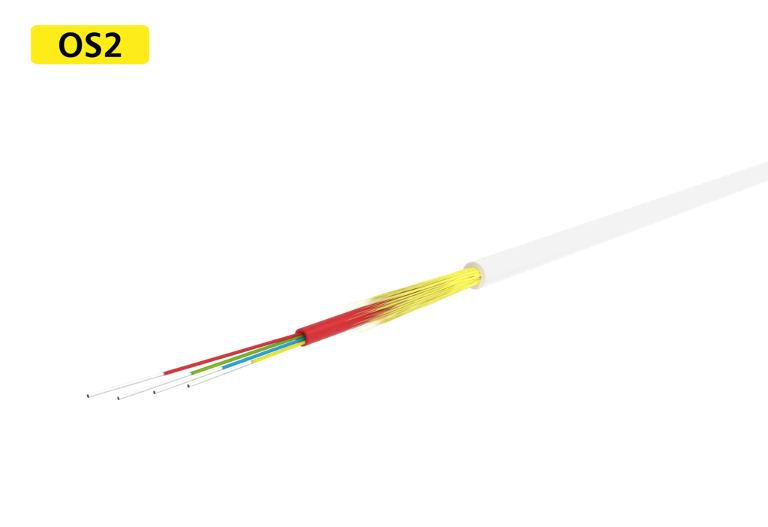

OpDAT FITH cable compact 1x4 OS2 class B2ca

  • FITH cable for indoor applications
  • for horizontal and backbone cabling
  • single mode fiber OS2, SM9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a, ITU G.657.A compatible to ITU-T G.652.D

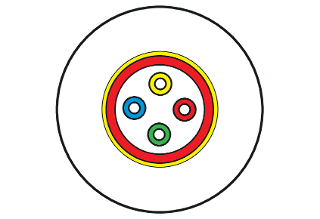

  • with 4 colored fibers incl. secondary coating (Ø 0.25 mm) and aramid yarn for strain relief
  • cable jacket halogen free with low smoke development and flame-extinguishing, LSHF (low smoke, halogen free)
  • outer diameter 2.3 mm
  • color: white
  • applicable standards: IEC 60794-2-20
  • fire behaviour: class B2ca s1a d0 a1 acc. to EN 50399 (classification according to EN 13501-6)
