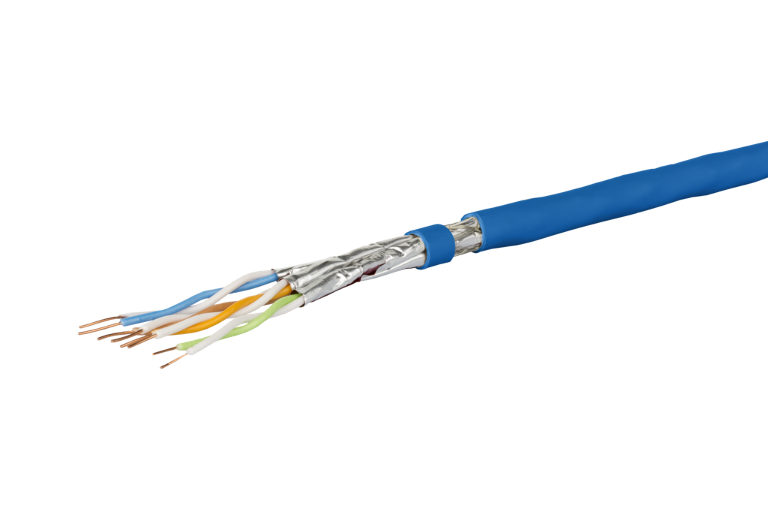

MC GC1000 plus23 Cat.7 S/FTP 4P LSHF 1000 m, class Eca
Description
- 10 GBit installation cable, simplex
- installation cable Cat.7 AWG 23 S/FTP with wires shielded in pairs
- 4 pairs (PiMF)
- pair shield: plastic foil with aluminum coating
- overall shield: tinned copper braid
- outer diameter: 7.20 - 7.30 mm
- color of the cable jacket: blue
- coupling attenuation: 80 dB
- applicable standards: EN 50173-1, ISO/IEC 11801-1, EN 50288-4-1 and IEC 61156-5
- cable jacket: LSHF (LSOH)
- flame-retardant to IEC 60332-1, IEC 60754-2, IEC 61034 and EN 50399
- fire behaviour: Class Eca (classification acc. to EN 13501-6)
- delivery unit: on drum - 1000 m/3280 ft
