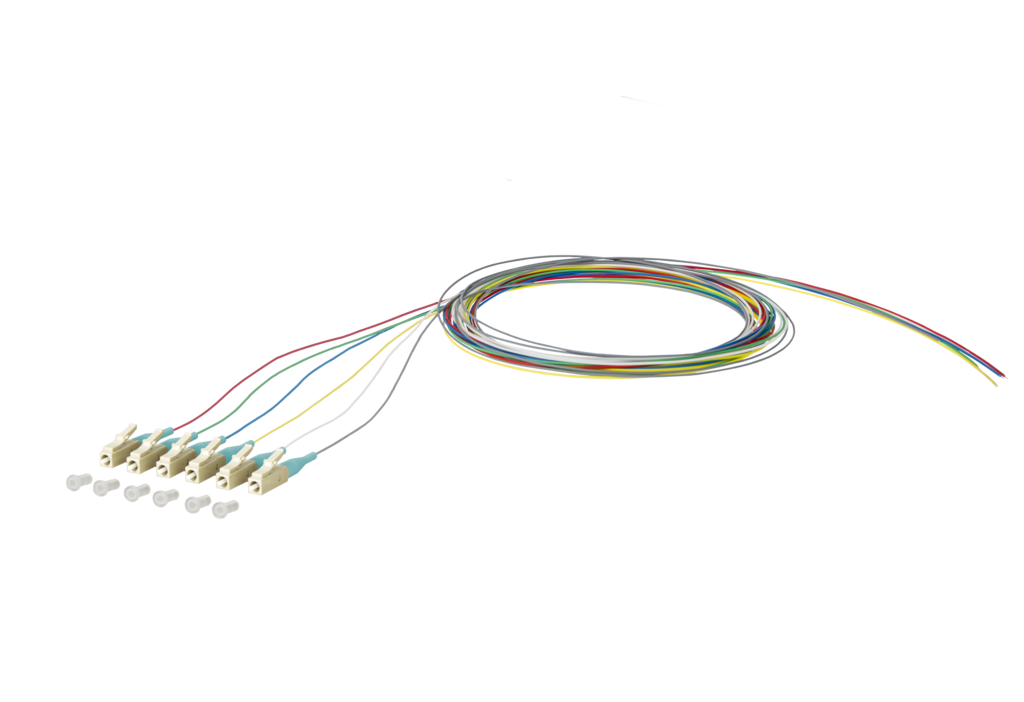

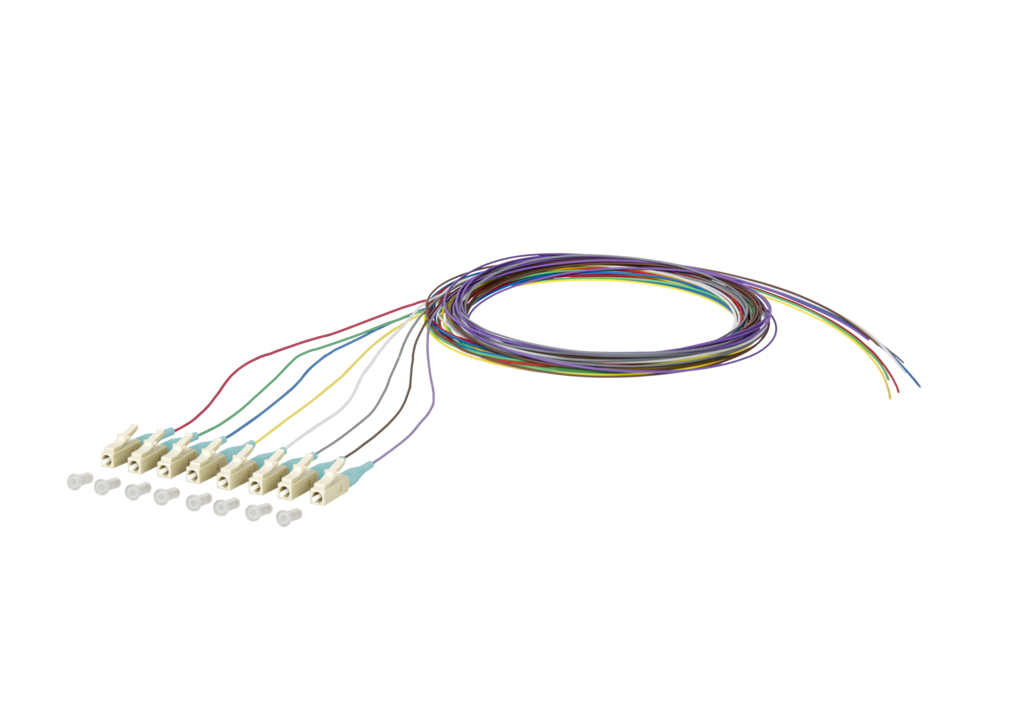

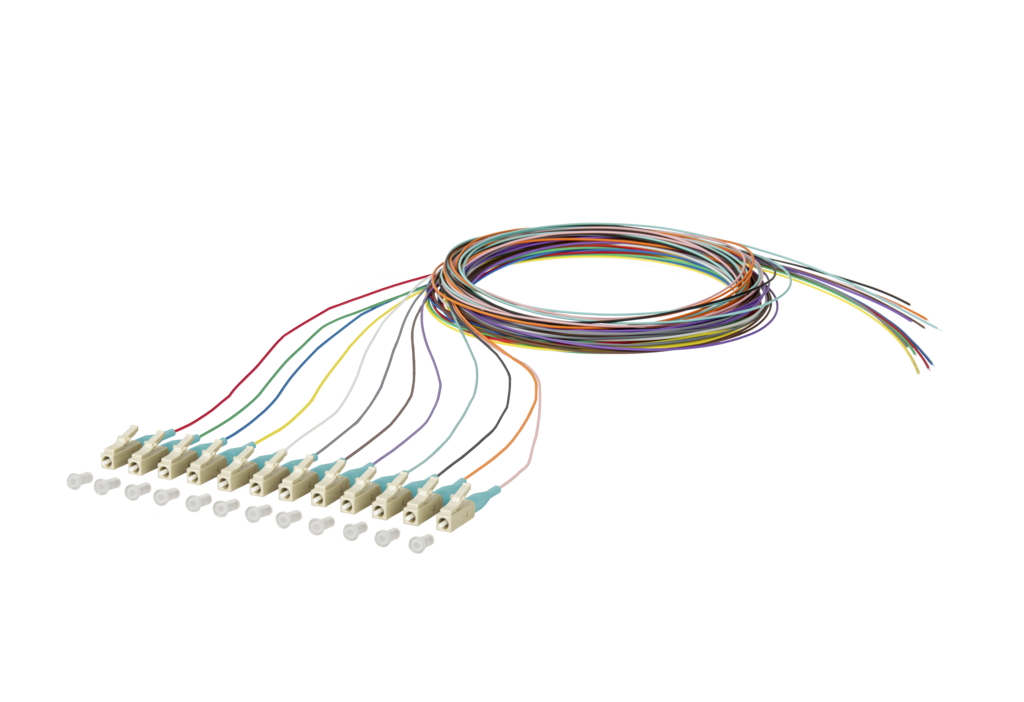

OpDAT pigtail LC-PC, OM3
Description
- LC plug according to IEC 61754-20
- Multi mode fiber OM3, G50/125 µm, bend insensitive according to IEC 60793-2-10 type A1a.2
- Compact loose tube fiber with dia. 0.9 mm, length 2.0 m
- Color sequence in sets according to IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquois, black, orange, pink. Secondary and primary coating same color
- Plug connector mounted on one side
- With test report, insertion loss and return loss tested at 100 %
- all available variants can be created with the cable configurator
Check US distributor inventory
Accessories
Overview of variants
Description
Interface 1
Fiber type
Number of cables / fibers
Part number
Accessories
