OpDAT wire Fanout MTP-M/12xLC-S OM5, 0.3 m
Description
- Wire fanout with 12 OM5 fibers, assembled with one MPO/MTP® connector and 12 LC simplex connectors.
- Male connector (with pins) as standard. Variants with female connector (without pins) are possible.
- available in assignment variants polarity A
- suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology)

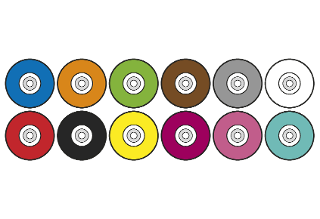

- wire diameter Ø 0.9 mm, color-coded according to TIA/EIA 598
- Fiber type: Bend-resistant multimode fiber, G50/125 µm, OM5 (IEC 11801), IEC 60793-2-10 A1a.4, ITU-T G.651.1.
- 100 % tested for insertion loss, return loss and end face geometry
- all patch cords are provided with serial number, barcode and measurement protocol
- all available variants can be created with the MTP® configurator
- MTP® is a registered trademark of US Conec Ltd., USA
Check US distributor inventory
Part number
151R5TMJO003A
4251394656250
