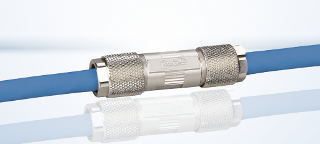

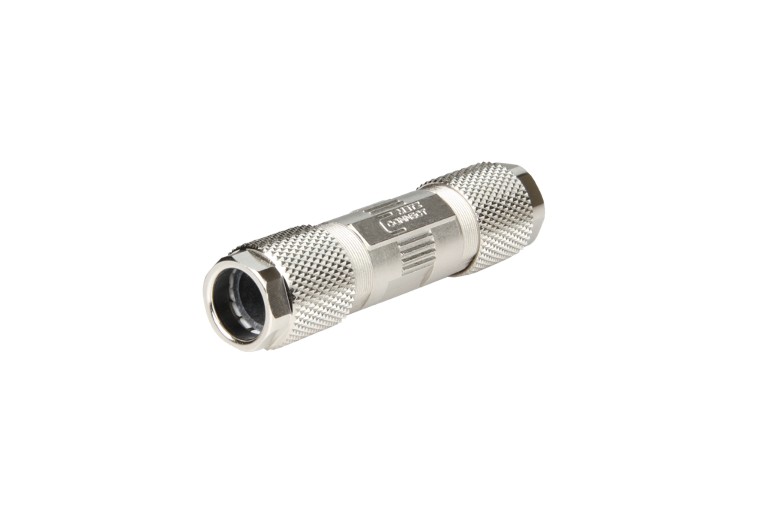

Cable connector class FA

Description
  • cable connector for field assembly Class FA for 8 wire cables
  • to connect / extend / repair / relocate copper data cables up to Cat.7A
  • compliance to Class FA up to 1000 MHz according to ISO/IEC 11801 in connection with Cat.7A copper cables *1
  • suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
  • compact design: diameter 16.8 mm x length 64 mm
  • IP67 protected housing in combination with IP67 appropriate cables *2
  • refined zinc die-cast housing

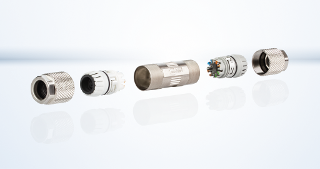

  • easy and fast assembly without special tools
  • shield connection and strain relief integrated
  • easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • conductor diameter up to 1.6 mm
  • suitable for cables with an overall diameter of 5.0 to 9.7 mm *2
  • fully shielded version according to DIN EN 50173-1
  • suitable for applications in the railway industry according to data sheet
  • *1 FA (with cable lengths of 20 m and above on the left and right side of the cable connector)
  • *2 IPX7 (when combined with cables suitable for IP67 and a cable jacket diameter of 6.2 mm to 9.7 mm)
Technical Data
General Data
M1
I1
C1
E2
cable connector
shielded
Copper
metallike
62 mm
16.8 mm
16.8 mm
2.441 in.
0.661 in.
0.661 in.
27 g
0.0595 lb
yes
Transmission characteristics
FA *1 (with cable lengths of 20 m and above on the left and right side of the cable connector)
yes
IEEE 802.3af
IEEE 802.3at
yes
yes
IEEE 802.3an
Connections/interfaces
IDC-connection
IDC-connection
AWG 26/1 - AWG 22/1
0,128 - 0,324 mm²
0,409 - 0,643 mm
0,016 - 0,025 in.
AWG 26/7 - AWG 22/7
0,141 - 0,355 mm²
0,483 - 0,762 mm
0,019 - 0,03 in.
1.6 mm
0.063 in.
5 mm
9,70 *2
0.197 in.
0.354
180°
yes
Electrical characteristics
0.5 A
60 V
max. 5 mOhm
min. 100 MOhm
750 V DC
Materials and material properties
GD-Zn (zinc die-cast)
Ni (nickel)
CuSn (tin bronze)
Sn (tin)
CuSn (tin bronze)
Sn (tin)
PA UL94-V0
yes
no paint wetting interfering substances (LaBS) in the process chain
subsequent contamination possible due to handling and possible storage in your company
compliant
compliant
Environmental conditions
-40 °C
85 °C
-40 °F
185 °F
-25 °C
85 °C
-13 °F
185 °F
IP6X
IPX7 *2 (when combined with cables suitable for IP67 and a cable jacket diameter of 6.2 mm to 9.7 mm)
II
1
Check US distributor inventory
Accessories
Part number
130863-02-E
4250184159247
