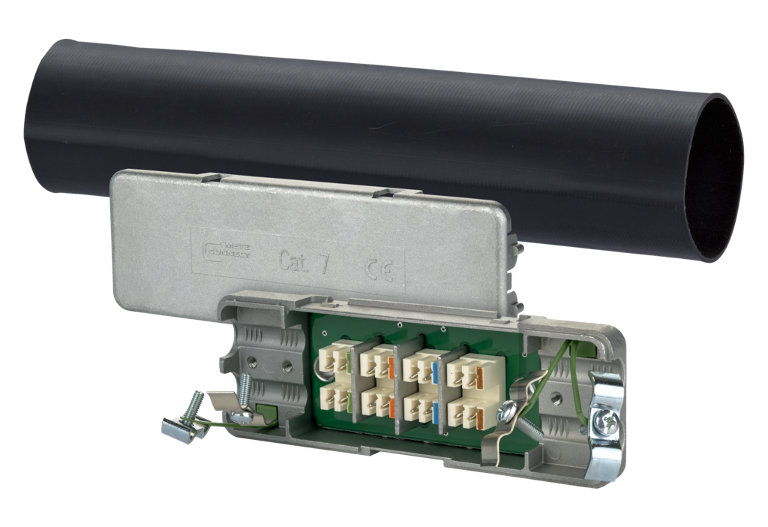

Cat.7 cable connector IP67

Description
  • for connecting/extending data cables up to Cat.7A
  • IP67 protection due to special shrink tube
  • class E to ISO/IEC 11801 Ed.2.2:2011-06 is complied with in combination with Cat.6, Cat.6A, Cat.7 and Cat.7A cables and Cat.6 connectors
  • connection of data lines AWG 26/1 to 22/1 (solid wire)
  • cable feed from one or two sides
  • cable sharing, i.e. splitting one 8-wire cable into two 4-wire cables (one cable tie required each on input and output side)
  • fully shielded metal housing
  • strain relief and separate captive 360° shield connection
Technical Data
General Data
M1
I1
C1
E2
cable connector
shielded
Copper
metallike
20.5 mm
114.2 mm
36.9 mm
0.807 in.
4.496 in.
1.453 in.
Transmission characteristics
7

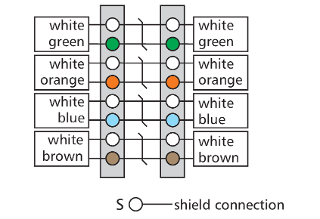

Connections/interfaces
LSA terminal block
LSA terminal block
1
1
1
1
AWG 26/1 - AWG 22/1
0,128 - 0,324 mm²
5.5 mm
9,6
0.197 in.
0.354
yes, if cross section is greater or the same
Electrical characteristics
0.5 A
60 V
max. 5 mOhm
min. 100 MOhm
750 V DC
Mechanical data
min. 100
Materials and material properties
GD-Zn (zinc die-cast)
yes
no paint wetting interfering substances (LaBS) in the process chain
subsequent contamination possible due to handling and possible storage in your company
compliant
Environmental conditions
-25 °C
85 °C
-13 °F
185 °F
-25 °C
85 °C
-13 °F
185 °F
IP6X
IPX7
490 m/s²
Check US distributor inventory
Part number
130863-01-E
4250184113195
