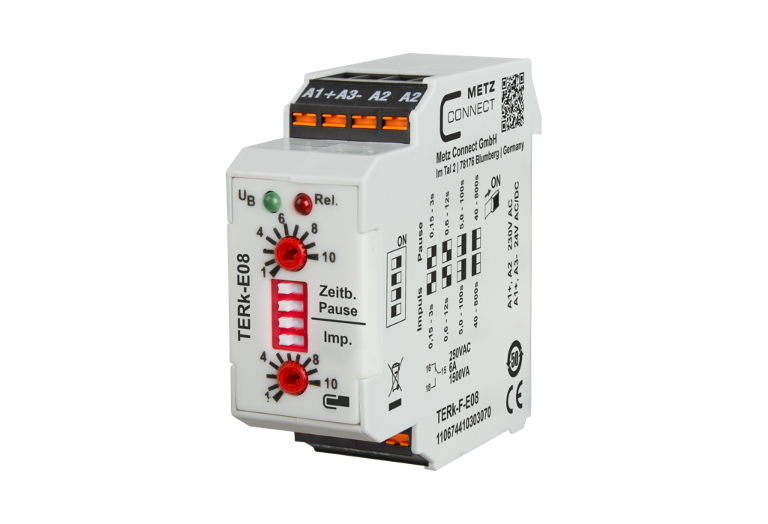

TERk-F-E08, 230 V AC, 24 V AC/DC tp 0,15-800 s, ti 0,15-800 s
Description

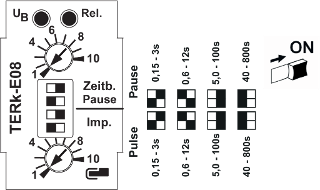

Clock generator with separately adjustable delay and pulse times. The time ranges can be programmed by means of the coding switches incorporated in the front.
- Connection with spring clamp terminal blocks (push-in)

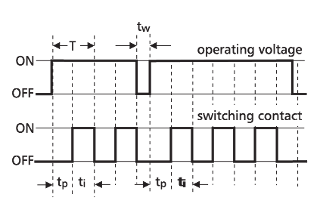

- Clock generating
- Adjustable time ranges
Technical Data
General Data
230 V AC / 24 V AC/DC

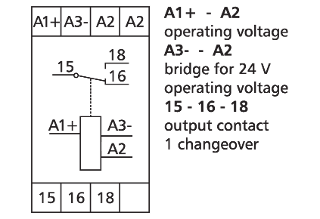

1 x changeover contact (SPDT)
AgSnO2
250 V AC
6 A
1200 cycles/h
greater than 50 ms
3 x 107
1 x 105
Green and red LED
22.5 x 61.3 x 60 mm
70 g
-10 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110674410303070
4251394629292
