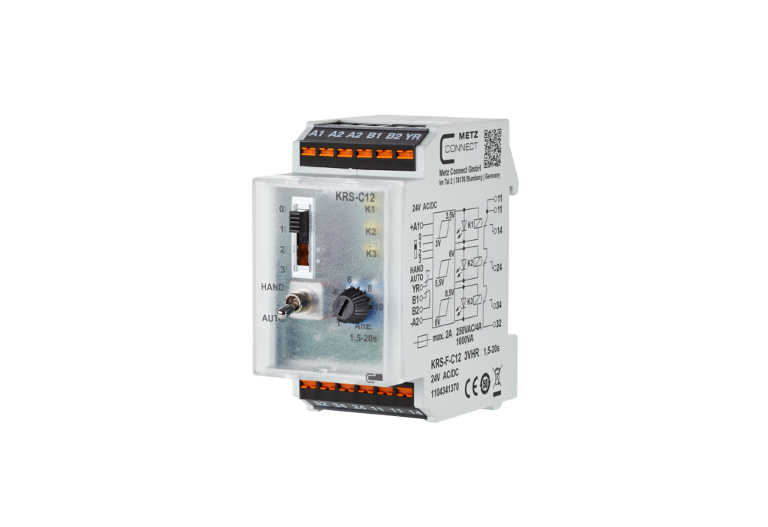

KRS-F-C12 3VHR 24 V AC/DC

Description

The threshold gate was developed for three-level motor control. Three LEDs are integrated in the module for visually checking the switching state.

  • Connection with spring clamp terminal blocks (push-in)
  • Activation by just one analog input
  • Manual control level with checkback
  • integrated timer relay
  • 3 changeover contacts (3PDT) with automatic locking
Technical Data
General Data
24 V AC/DC
60 mA
22 mA
250 V AC
3 x changeover contacts (3PDT)
AgSnO2
4 A
360 cycles/h
1 x 107 switching cycles
1 x 105 switching cycles
Yellow LED
35 x 69.3 x 60 mm
95 g
-10 °C to 50 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
1104341370
4251394629377
