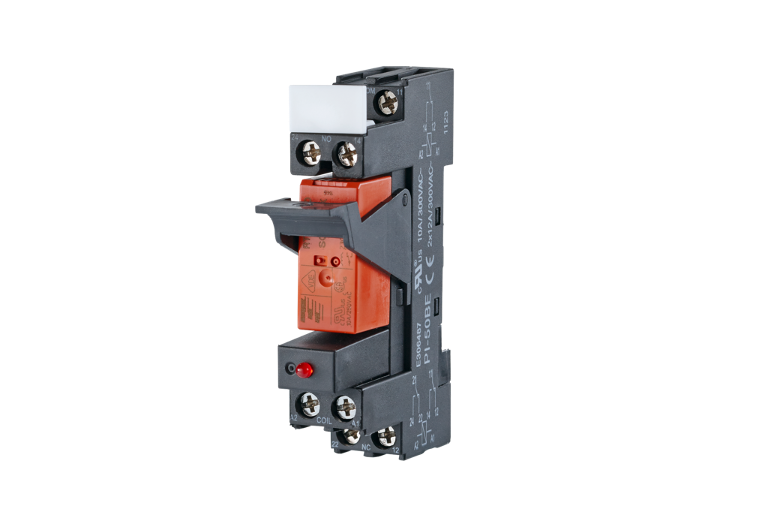

RM21 230 V AC

Description

Relay module for large loads such as lamp loads, motors and drives for electrical isolation between logic and load.

  • Connection with screw-type terminals
  • Socket 2 storeys
  • Pluggable relay
  • With labeling field, socket, bracket and LED-module
  • Variants: 24 V AC or 230 V AC
Technical Data
General Data
24 V or 230 V AC
69 mA
7 mA

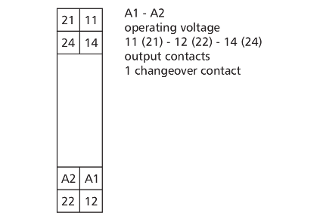

1 changeover contact
AgNi 90/10
250 V AC
16 A *
30 A
360 cycles/h
10 x 106 switching cycles
1 x 105 switching cycles
2 x 2.5 mm2
Red LED

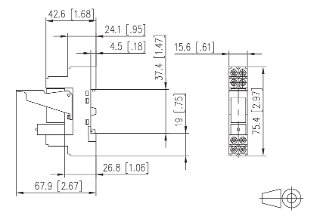

15.5 x 75 x 65 mm
95 g
-20 °C to 55 °C
-25 °C to 70 °C

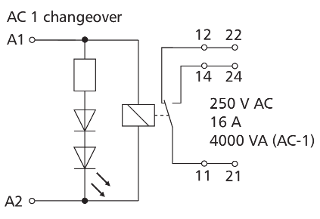

For currents higher than 12 A (16 A), terminals 11-21, 12-22 and 14-24 on the socket must be bridged to distribute the current to both contact paths.
Check US distributor inventory
Part number
11051105
4251394625614
