KRZ-F-E08 HR 24 V AC/DC
Description

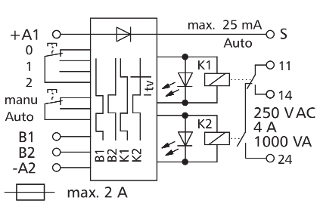

The coupling module is designed for two-level motor control.
- Connection with spring clamp terminal blocks (push-in)
- Interlocked relays
- Manual control level
Technical Data
General Data
24 V AC/DC
30 mA
1 changeover contact (SPDT)
AgSnO2
250 V AC
4 A
6 A
1200 cycles/h
20 ms
20 ms
1 x 107 switching cycles
1 x 105 switching cycles
2 red LEDs
22.5 x 61.3 x 60 mm
70 g
-20 °C to 55 °C
-25 °C to 70 °C
Check US distributor inventory
Part number
11066813272270
4251394629445
