KRA-S12 4S/4S RC
Description
The electromechanical relay is developed for versatile control applications. The relay has four normally open contacts and four control inputs, each with integrated protection circuitry to support safe operation. These four separate inputs allow the user to control different voltage levels simultaneously with a single device. The relay outputs include an RC combination for spark quenching, which can improve life and performance. In addition, the relay is equipped with LED indicators for easy status monitoring.

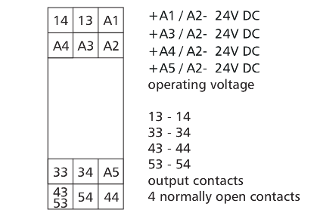

- 4 normally open contacts
- 4 control inputs
- Integrated protective circuit at each input
- RC combination for spark quenching at the relay outputs
- LED control
- Connection with screw type terminal blocks
Technical Data
General Data
24 V DC
4 x 13 mA
4 normally open contacts
AgNi
250 V AC/DC
6 A
4 x 6 A
8 A
360 cycles/h
10 ms
5 ms
2 x 107 switching cycles
1 x 105 switching cycles
2.5 mm2
green LED
22.5 x 75 x 95 mm
140 g
-20 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
160229
4250184119340
