MB-DIO4/2-IP Modbus/BACnet 230 V

Description

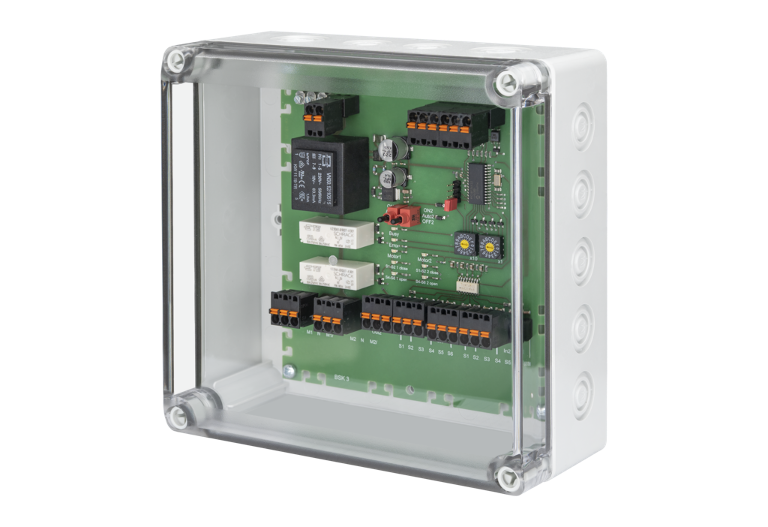

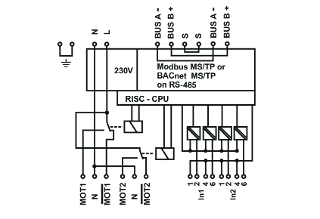

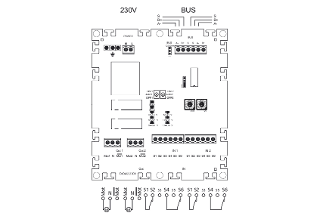

The MB-DIO4/2-IP 230 V module in IP65 housing with 4 digital inputs and 2 relay outputs is developed for decentralized switching tasks. Suitable, for example, to accommodate light switches and window contacts in a room, and to switch light strips or to use as blinds control. Motor-driven actuators (e.g. ventilation or fire dampers) can be controlled. Depending on the operating mode, the module can be switched or requested with Modbus standard registers or with BACnet objects. For manual control, the relay outputs are equipped with switches. The settings of the operating mode, bit rate and parity are made via two rotary switches. Operating mode, bit rate and parity also adjustable via software.

  • for the control of up to two actuators, e.g. fire dampers
  • Connection options for actuators with open connection lines with pluggable push-in technology
  • Supply voltage is also switching voltage
  • Relay output suitable for inrush current 65 A < 20 ms (NO), continuous current 6A, total current 8 A
  • generous space for installation - no additional distribution box required

BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.

Technical Data
General Data
Modbus RTU / BACnet MS/TP
00 to EF
00 to EF
1200 to 115200 bit/s
19200 Bit/s Even
RS485 (two-wire bus)
230 V AC +/- 10% / 50 Hz
12 mA
1
4
Contact
2 changeover contacts (DPST)
6 A per relay (65 A for 20 ms NO) max. current 8 A
175 x 75 x 175 mm
703 g
any
-5 °C to 55 °C
-20 °C to 70 °C
IP65
LED green, red, yellow
