BMT-Multi I/O BACnet MS/TP

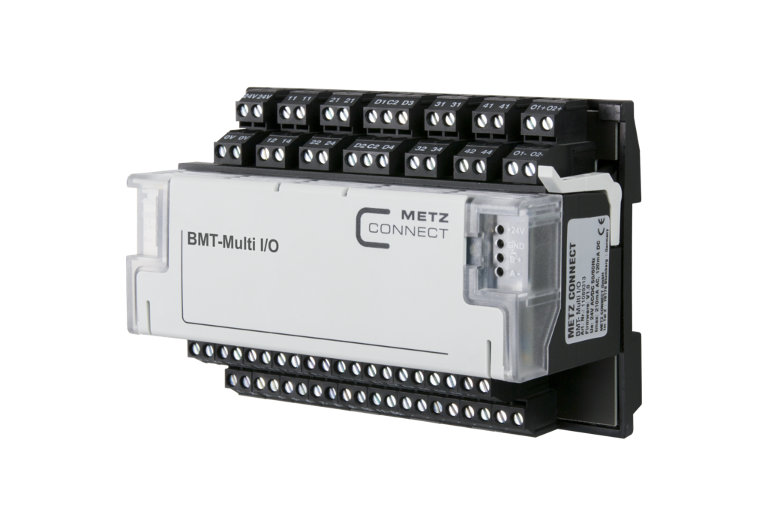

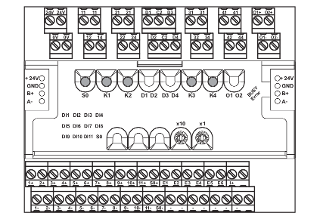

The BACnet module BMT-Multi I/0 is a compact and rapidly to install solution to connect digital and analog signals from the actor and sensor level directly to a control unit in building automation via BACnet MS/TP protocol. 29 I/Os, some of them are configurable, are available for different tasks. The inputs and outputs can be controlled and scanned by standard objects via a BACnet Client. Module address and bit rate are set with two rotary switches on the front or by software. The relays K1 to K4 are equipped with a manual control and allow manual intervention. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.

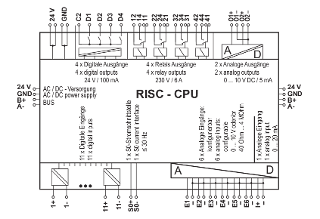

Technical Data
General Data
00 to F9 hex
RS485 (two-wire bus)
9600 to 115200 bit/s
24 V AC/DC / +/- 10% (SELV)
220 mA (AC) / 110 mA (DC)
100 %
11 x optocoupler,galvanically isolated
1 x per DIN EN 62053-31, Class A
6 x 40 Ohm to 4 MOhm
6 x 0 to 10 V DC
1 x analog 0 to 20 mA DC
4 x changeover (4PDT) / 250 V AC / 6 A
push buttons, shift fromautomatic to manual operationby pressing > 1 s
4 x 24 V DC / 100 mAgalvanically isolated
2 x analog 0 to 10 V DC / 5 mA,galvanically isolated
