Description

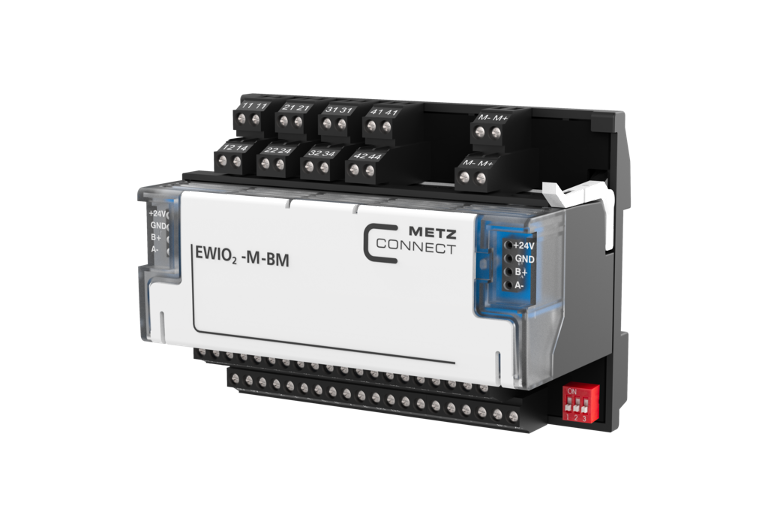

Das EWIO2-M-BM is a powerful data logger for the energy consumption monitoring and energy monitoring in buildings, on machines, plants and systems. Two Ethernet ports with a Daisy Chain function are available for the chain furhter Data logger and connection to a LAN network. The EWIO2-M-BM can be integrated into a Modbus TCP or BACnet/IP network to perform control tasks. The system is parameterised, configured and commissioned through a platform-independent web browser. The M-Bus and Modbus RTU interfaces enable to read different meters: e.g. electricity, water, gas and heat. Optionally, the measured values can either be sent from the data base (push) or read out (pull) via mail (SSL) or FTP (SSL), from a BACnet or Modbus controller. Simple functions and control tasks in building or industrial automation can be created and visualized via the graphic programming interface "Node-RED" integrated in the web interface and the numerous digital and analog I/Os. An integrated µSD memory card expands the range of functions of the EWIO2-M-BM for save settings, data and applications.
BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.
