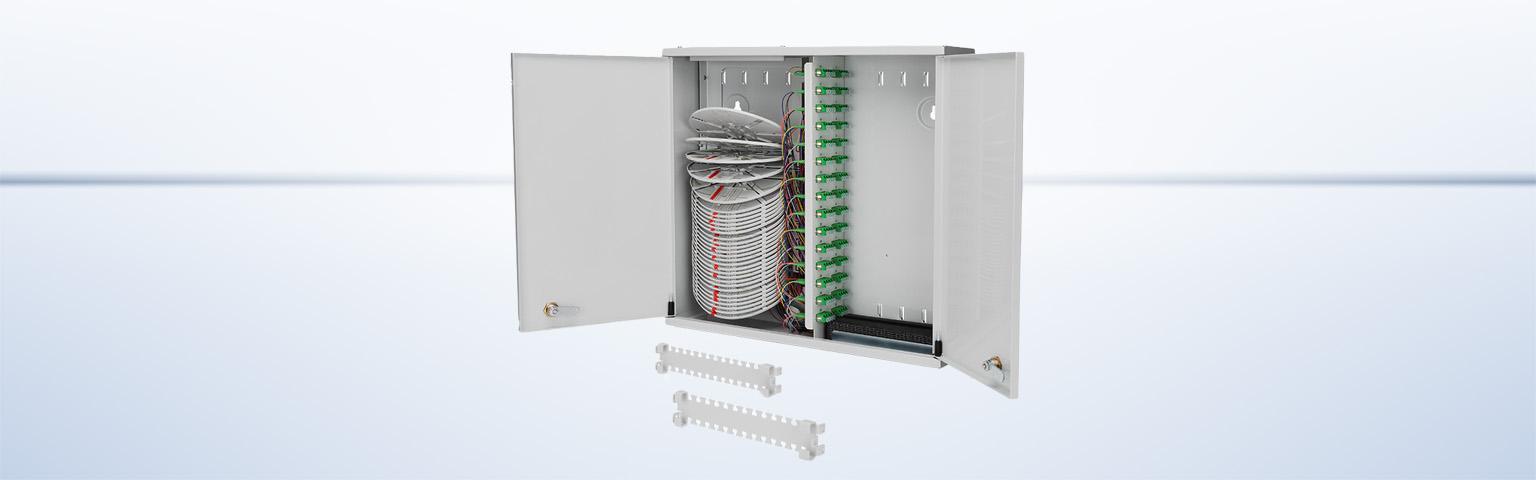

OpDAT WV
Wall-mounted distributor for apartment buildings
Universally applicable distribution boxes for floor wiring or as a house distribution point in the equipment room. Now also as distribution cabinet for apartment buildings with up to 30 residential units.
The new variant of the OpDAT wall-mounted distributor serves as a distribution cabinet for apartment buildings with up to 30 residential units. The strain relief system in combination with the single circuit, cassettes allow easy handling and a separate splice area for each residential unit.
Features
- up to 5 single circuit splice cassette blocks, each with 6 splice cassettes, enable the fibers of each individual housing unit to be deposited and spliced separately
- each splice cassette is equipped with 4 pigtails each. The pigtails are deposited separately and ready for splicing
- each LC-Q coupling can be directly assigned to a splice cassette and thus to a housing unit
- the innovative cable support ensures a safe strain relief of the incoming cables
- of the incoming cables
- in the patch area, incoming patch cables can be safely inserted and plugged in from above or below through a foam cable guide.
- alternatively, a pre-assembled cable can be screwed in and intercepted as a connection between the house transfer point and the wall distributor
- wall distributor size M
- labeling fields in the doors
Order details
Fiber optic wall distributors
Additional material

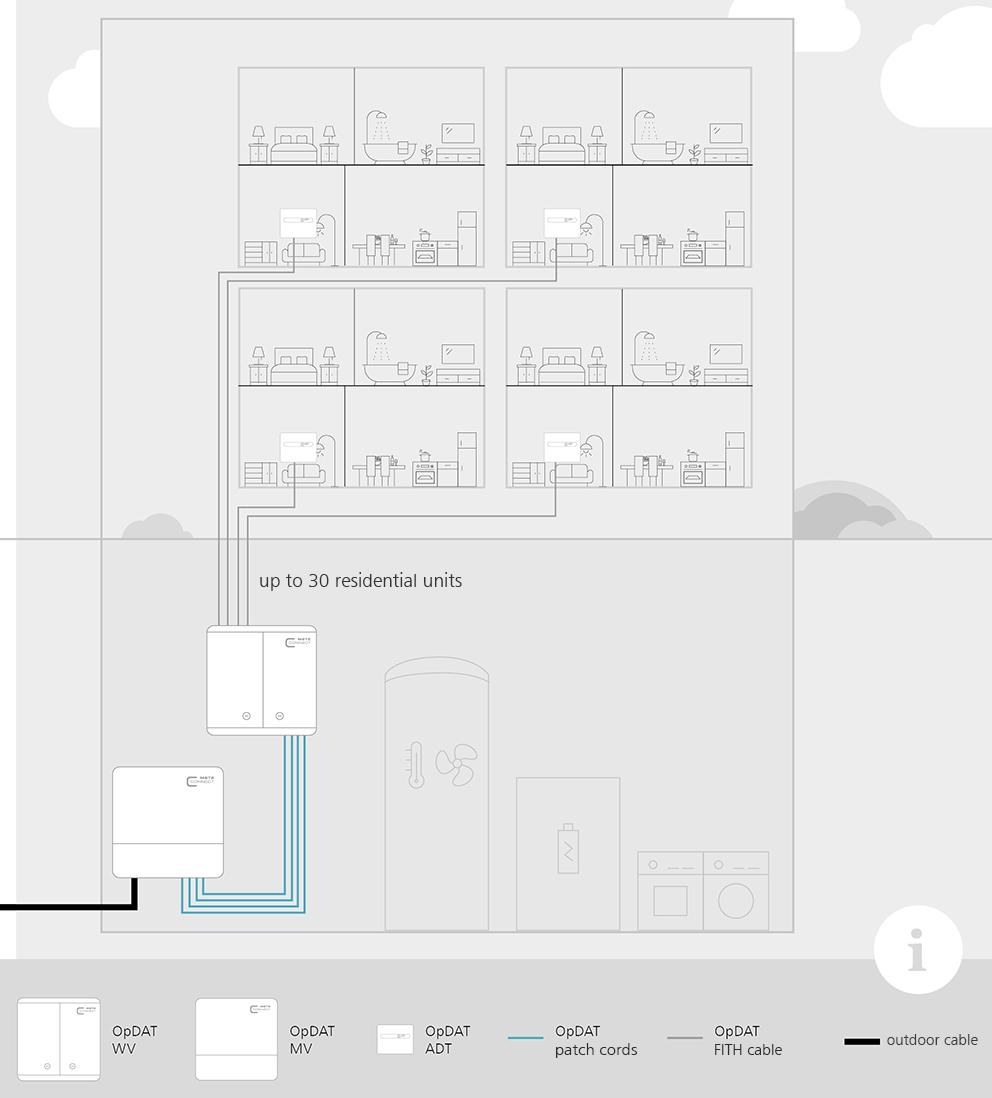

Application example
Apartment building with individual ADTs
Equipment variants

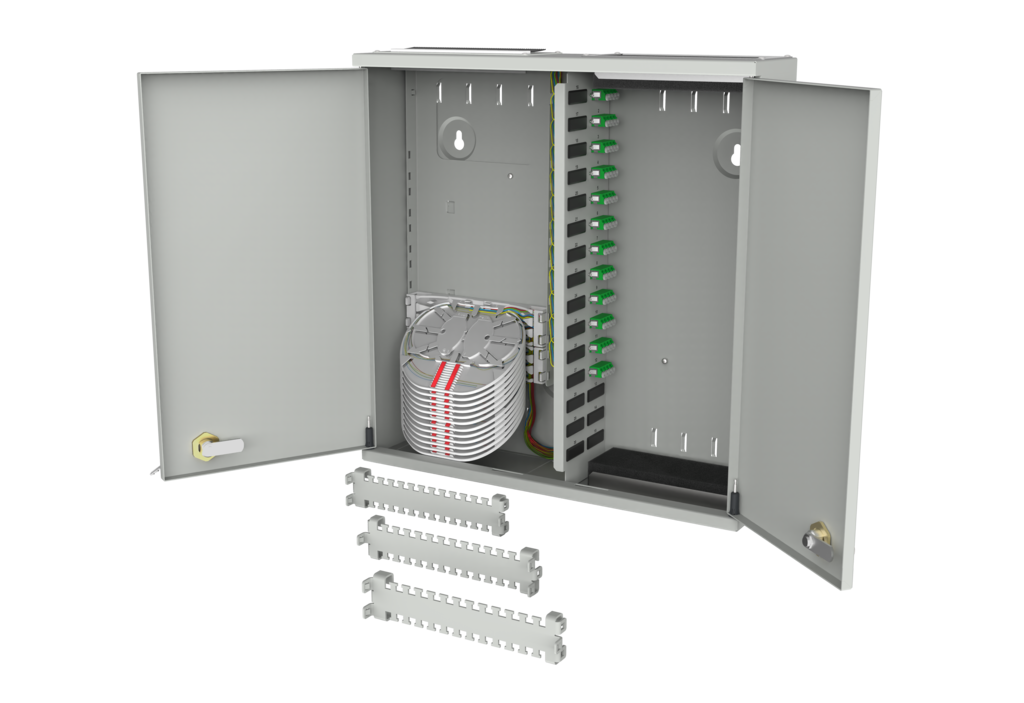

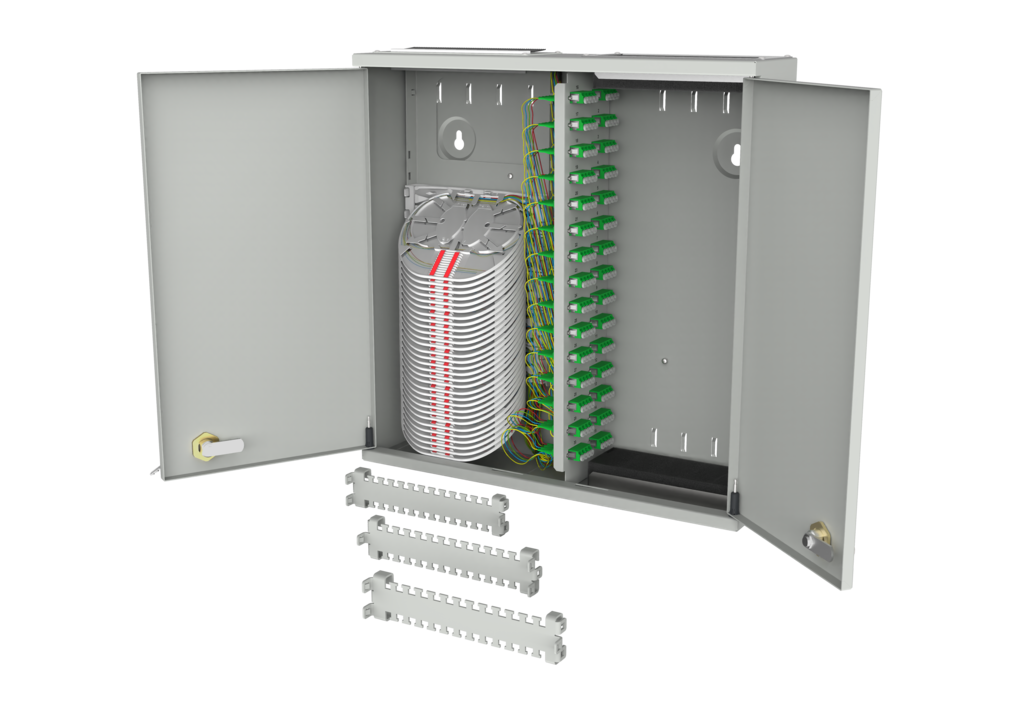

- equipped with single circuit splice cassette blocks, couplers and pigtails
- each splice cassette block has 6 splice cassettes
- each splice cassette is equipped with 4 pigtails. The pigtails are stored ready for splicing. Pigtail connectors cleaned and plugged into couplers, assignment according to color code IEC 6030
- included in delivery:
- cable entry brush strip
- 3x stackable strain reliefs for up to 12 cables each
- foam cable entry for patch cables
- mounting set for wall mounting
