MCO IP69k

Protective housing for outdoor applications

The demand for outdoor cabling solutions is growing inexorably. This is due to modern network and IP interface technologies, which are essential for digitalization. They enable the networking and deployment of surveillance cameras, sensors and digital traffic signs, as well as wireless access points.

METZ CONNECT Outdoor (MCO)

Our MCO IP69k protective housings provide reliable protection for your permanent outdoor connections. They are not only completely dust and waterproof, but also resistant to ozone, UV radiation and salt water. They also withstand high temperatures, strong vibrations and high-pressure jet cleaning, providing reliable protection against external interference. The flexible and easy-to-install solutions have been specially designed to accommodate and protect field-terminated cables, pre-terminated patch cables and fiber optic connections.

Flexible & reliable

Our universally applicable protective housings for outdoor applications are available in three different versions and cover all conceivable applications in your practice. The three variants of the protective housings have been specially designed for free installation, as well as for wall, top-hat rail, quick and pole mounting. In addition, we also offer a solution for wall or housing feed-through. Thanks to the adapter plates included in the scope of delivery, countless combination options are possible, with various modules, plug-in connectors and cable connectors. Regardless of whether it is a matter of accommodating and protecting field-assembled cables or pre-assembled patch cables and fiber optic connections.

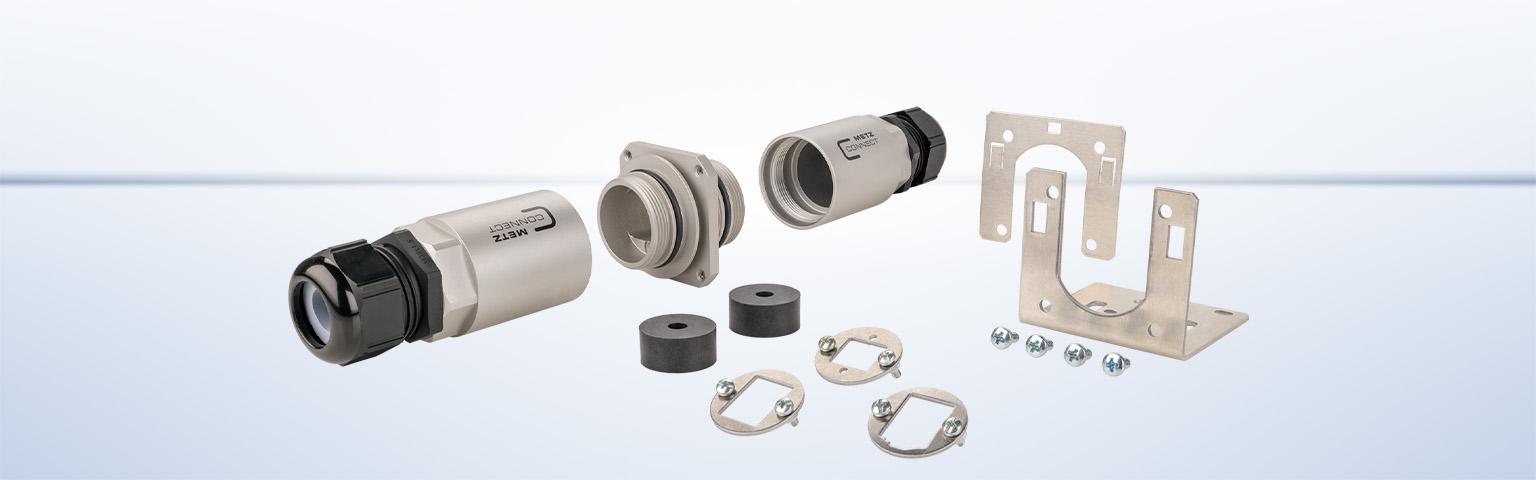

Structure

Variants

MCO IP69k – Set for exposed installation

Part number: 14040000-E

universally and flexibly applicable
completely dust and waterproof
resistant to ozone, UV radiation and salt water
resistant to high pressure jet cleaning, high temperatures and strong vibrations
tested according to IP69k, IP67 and IP66

M32 tubes and flange made of anodized aluminum
incl. M32 cable glands (PA) with sealing inserts, O-rings and adapter plates for MC module, keystone and fiber optic components, for clean mounting inside the flange
suitable for cable sheath diameters from 4.5 to 15 mm

MCO IP69k – Set with mounting bracket

Part number: 14040010-E

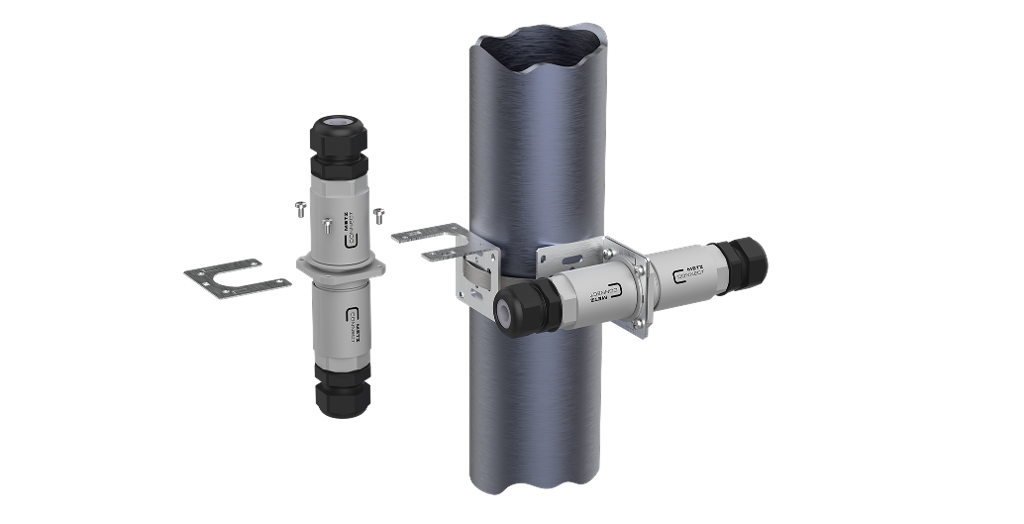

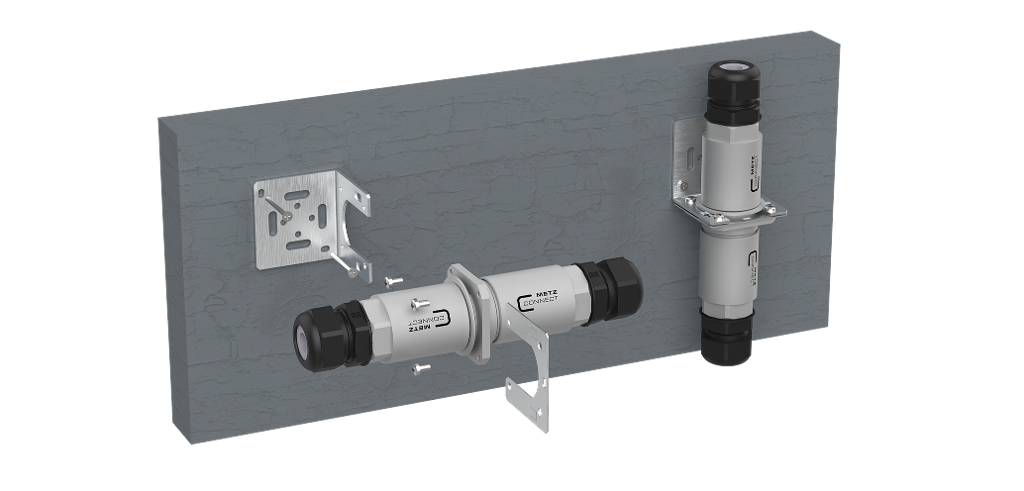

designed for wall, top-hat rail, quick and pole mounting

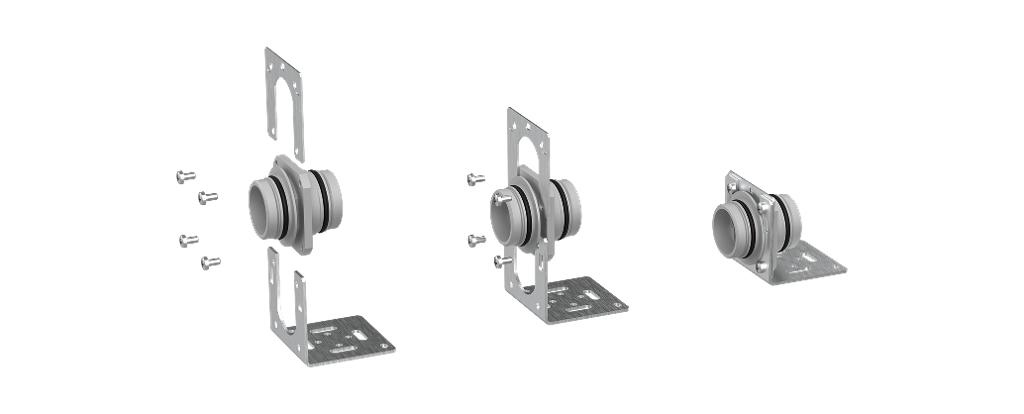

incl. mounting bracket and mounting plate for quick and tool-free fixing of the flange
universal and flexible use
completely dust- and waterproof
resistant to ozone, UV radiation and salt water
resistant to high-pressure jet cleaning, high temperatures and strong vibrations

tested according to IP69k, IP67 and IP66
M32 tubes and flange made of anodized aluminum
incl. M32 cable glands (PA) with sealing inserts, O-rings and adapter plates for MC module, keystone and fiber optic components, for clean mounting inside the flange
suitable for cable sheath diameters from 4.5 to 15 mm
DIN rail adapter not included in delivery, part no.: 1308990111-I

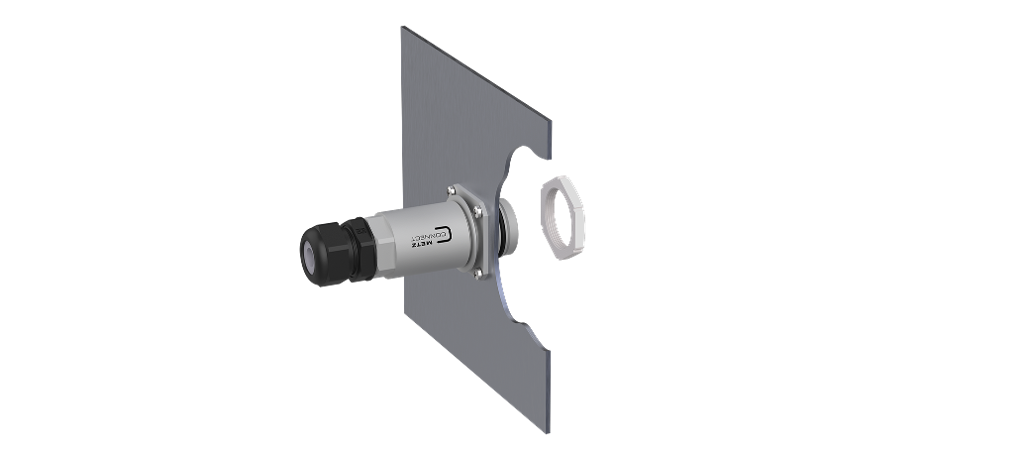

MCO IP69k – Set for Wall and housing bushing

Part number: 14040100-E

incl. M40 locknut (PA) for wall and housing mounting
universal and flexible use
completely dust- and waterproof
resistant to ozone, UV radiation and salt water
resistant to high pressure jet cleaning, high temperatures and strong vibrations

tested according to IP69k, IP67 and IP66
M32 tube and flange made of anodized aluminum
incl. M32 cable gland (PA) with sealing inserts, O-rings and adapter plates for MC module, Keystone and fiber optic components, for clean mounting inside the flange of the flange
suitable for cable sheath diameters from 4.5 to 15 mm
